True Zero Order Broadband Mica Waveplates

Get a Price/Quote

Product Details:

Measurement Utilizes birefringence properties of mica to achieve desired optical retardation
Color Black
Product Type True Zero Order Broadband Mica Waveplates
Material Mica
Size Customizable
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

True Zero Order Broadband Mica Waveplates Price And Quantity

Minimum Order Quantity 10 Piece

True Zero Order Broadband Mica Waveplates Product Specifications

Measurement Utilizes birefringence properties of mica to achieve desired optical retardation
Size Customizable
Material Mica
Product Type True Zero Order Broadband Mica Waveplates
Color Black

True Zero Order Broadband Mica Waveplates Trade Information

Supply Ability 100 Piece Per Week
Delivery Time 7 Days

Product Description

Specification

Retarder Material	Muscovite Mica
Substrate Material	N-BK7
Transmitted Wavefront:	<1 Lambda at 633 nm for diameters 25.4 mm
Clear Aperture:	>85% of central diameter
Surface Quality	40-20 scratch dig
Diameter D Tolerance:	+0/-0.25 mm
Retardation Tolerance: (over complete wavelength range)	/10 for 550 nm types /20 for 850 nm types
Thickness t Tolerance:	+/- 0.25 mm
Damage Threshold (uncoated):	0.7 J cm, 11 ns, 100 Hz @ 1064 nm
Temperature Coefficient of Retardation per C	negligible

Part Number	Wavelength Range	Center Wavelength	Retardation (at Center Wavelength)	Diameter	Thickness t
	nm	nm		mm	mm
MA0100455	400-700	550	/4	10.0	2.5
MA0200455	400-700	550	/4	20.0	2.5
MA0250455	400-700	550	/4	25.0	2.5
MA0254455	400-700	550	/4	25.4	2.5
MA0500455	400-700	550	/4	50.0	3.5
MA0100255	400-700	550	/2	10.0	2.5
MA0200255	400-700	550	/2	20.0	2.5
MA0250255	400-700	550	/2	25.0	2.5
MA0254255	400-700	550	/2	25.4	2.5
MA0500255	400-700	550	/2	50.0	3.5
MA0100485	700-1100	850	/4	10.0	2.5
MA0200485	700-1100	850	/4	20.0	2.5
MA0100285	700-1100	850	/2	10.0	2.5
MA0200285	700-1100	850	/2	20.0	2.5

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Waveplates Retardation Plates' category

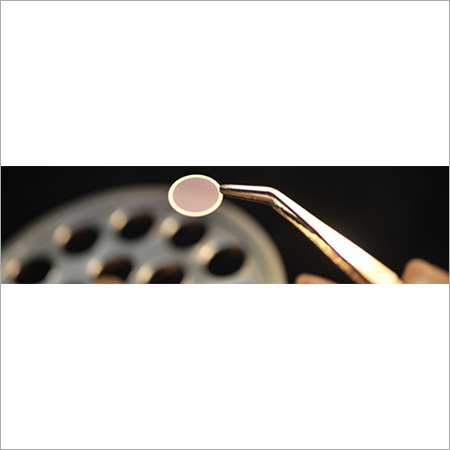

True Zero Order Bare Product Type : True Zero Order Bare Material : Crystalbased optical material Size : Customized dimensions available Color : Silver Measurement : Light spectrum analysis Accuracy : High Objective : True zero order Function : Measurement of optical properties Theory : Zeroorder diffraction optics Length : Customization available Resolution : Precision measurement Lens : Flat zeroorder crystal optic Weight : Lightweight

Send Inquiry

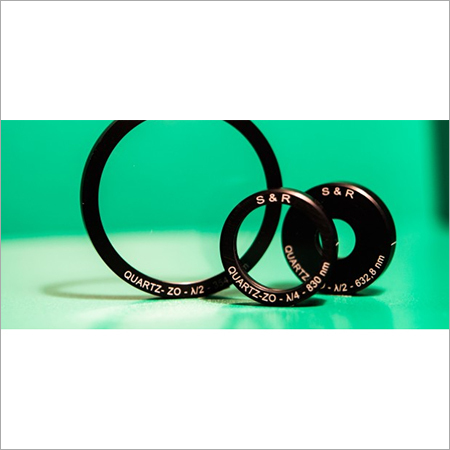

Quasi Zero Order Crystal Quartz Waveplates Product Type : Quasi Zero Order Crystal Quartz Waveplates Material : Crystal Quartz Size : Variety of diameters Color : Black Measurement : Wave retardation Accuracy : High Objective : Provide quasizeroorder wave retardation Function : Polarization modification Theory : Optical polarization theory Length : Standard sizes available Resolution : Precisionoriented Lens : None Weight : Lightweight
