True Zero Order Bare

Get a Price/Quote

Product Details:

Objective True zero order
Magnification None
Accuracy High
Theory Zero-order diffraction optics
Measurement Light spectrum analysis
Lens Flat zero-order crystal optic
Color Silver
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

True Zero Order Bare Price And Quantity

True Zero Order Bare Product Specifications

Objective True zero order
Magnification None
Material Crystal-based optical material
Function Measurement of optical properties
Length Customization available
Weight Lightweight
Color Silver
Resolution Precision measurement
Lens Flat zero-order crystal optic
Product Type True Zero Order Bare
Theory Zero-order diffraction optics
Measurement Light spectrum analysis
Accuracy High
Size Customized dimensions available

Product Description

Specification

Retarder Material	Muscovite Mica
Beam Deviation	10 arcsec
Wavefront	/10 @ 633 nm
Clear Aperture	85% of central diameter
Surface Quality	40-20 scratch dig
Retardation Tolerance	/50 for 532 nm type (/40 - /300 depending on design wavelength)
Homogeneity of Retardation	/200
Diameter Tolerance	+0 / -0.1 mm
Damage Threshold, pulsed	10 J/cm, 11 ns, 100 Hz @ 1064 nm (58 J/cm test result)
Damage Threshold, cw	0.5 kw/cm @ VIS-NIR
Temperature Coefficient of Retardation per C	negligible
Standard Retardations	/4, /2

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Waveplates Retardation Plates' category

Quasi Zero Order Crystal Quartz Waveplates Material : Crystal Quartz Color : Black Size : Variety of diameters Product Type : Quasi Zero Order Crystal Quartz Waveplates Accuracy : High Measurement : Wave retardation Objective : Provide quasizeroorder wave retardation Function : Polarization modification Length : Standard sizes available Weight : Lightweight Resolution : Precisionoriented Theory : Optical polarization theory

Send Inquiry

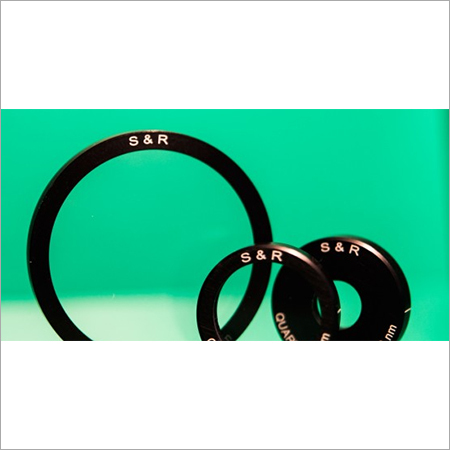

Multiple Order Crystal Quartz Waveplates Material : Crystal Quartz Color : Black rims transparent quartz Size : Varies (customizable) Product Type : Multiple Order Crystal Quartz Waveplates Accuracy : High precision Measurement : Waveplatespecific metrics Objective : Adjust polarization state in optical systems Function : Polarization manipulation Length : Standard as per the application Weight : Lightweight Resolution : Dependent on wavelength range Theory : Comprehensive birefringence principles
